In modern manufacturing—from aerospace turbines to EV motors—advanced applications demand verifiable sub-micron tolerances. When inspecting Total Indicator Reading (TIR) on critical cylindrical components, using a reliable runout measurement tool is critical; achieving reliable accuracy requires isolating the part from vibration, friction, and mechanical noise.
Traditional contact-style bearings introduce physical variables that make repeatable, 10-microinch accuracy difficult in high-throughput environments. To achieve certified results, the industry relies on air-bearing technology. This post explores the physics behind air bearings and why they are the foundation for high-throughput precision using turnkey systems like ABTech’s FormCheck™ MicroTIR Gages.
The Limitations of Mechanical Bearings in High-Precision Environments
Traditional mechanical bearings—whether roller, ball, or journal—rely on metal-on-metal contact. While effective for general machining, they introduce asynchronous error motion during sub-micron inspection. Microscopic imperfections in the steel balls or raceways cause slight mechanical deviations as the table rotates. This mechanical "runout" stacks with the part's actual runout, masking its true geometry.
Additionally, physical contact inevitably causes friction-induced degradation. Even premium mechanical spindles eventually wear down, lose their factory calibration, and require costly rebuilds and unacceptable downtime in the quality lab.
The Physics of Frictionless Motion: The Air-Bearing Advantage
An air-bearing rotary table eliminates mechanical contact by replacing rolling elements with a continuous, pressurized film of air. This fluid film creates a critical "averaging effect." Because the table floats on a uniform air cushion, minor surface irregularities in the base materials are effectively averaged out.
This suspension is exactly what allows ABTech’s MicroTIR systems to achieve radial and axial bearing accuracies of <5.0 µ” (0.125 µm), with an overall certified system accuracy better than 10 millionths of an inch (10μ” or 0.25μm). Floating on air also means zero static friction (stiction). Rotation is perfectly fluid from the first degree of movement, ensuring the gage captures true geometry without mechanical interference.
Long-Term Repeatability and Total Cost of Ownership (TCO)
Frictionless motion translates directly into long-term reliability. With zero physical contact between components, there is zero mechanical wear. As long as the system receives clean air (requiring just 2.0 cfm @ 60 psi), an air bearing maintains day-one accuracy indefinitely.
This represents a strategic investment for quality departments. Eliminating frequent spindle rebuilds and recalibrations significantly lowers Total Cost of Ownership (TCO) while providing a robust, maintenance-free reference axis that guarantees consistent operator readings year after year.
Overcoming Load Capacity Limitations
A common industry misconception is that frictionless precision cannot scale for heavy industrial parts. However, by optimizing the surface area and stiffness of the air gap, high-capacity air bearings can support massive weights without compromising sub-micron accuracy.
The ABTech MTIR400 exemplifies this engineering. It natively accommodates parts up to a 32” (813 mm) swing diameter, a 36” (1,220 mm) maximum part height, and an impressive 2,000 lbs (998 Kg) of axial load. This proves lab-grade metrology easily applies to heavy-duty realities, allowing for the precise measurement of massive gears, pistons, and jet-engine components.
The Value of Turnkey Inspection Systems vs. Component Integration
While the air bearing is the heart of the system, purchasing raw components brings hidden integration costs. To measure TIR accurately, bearings must be engineered alongside inspection-grade granite bases, rigid stands, and leveling mechanics.

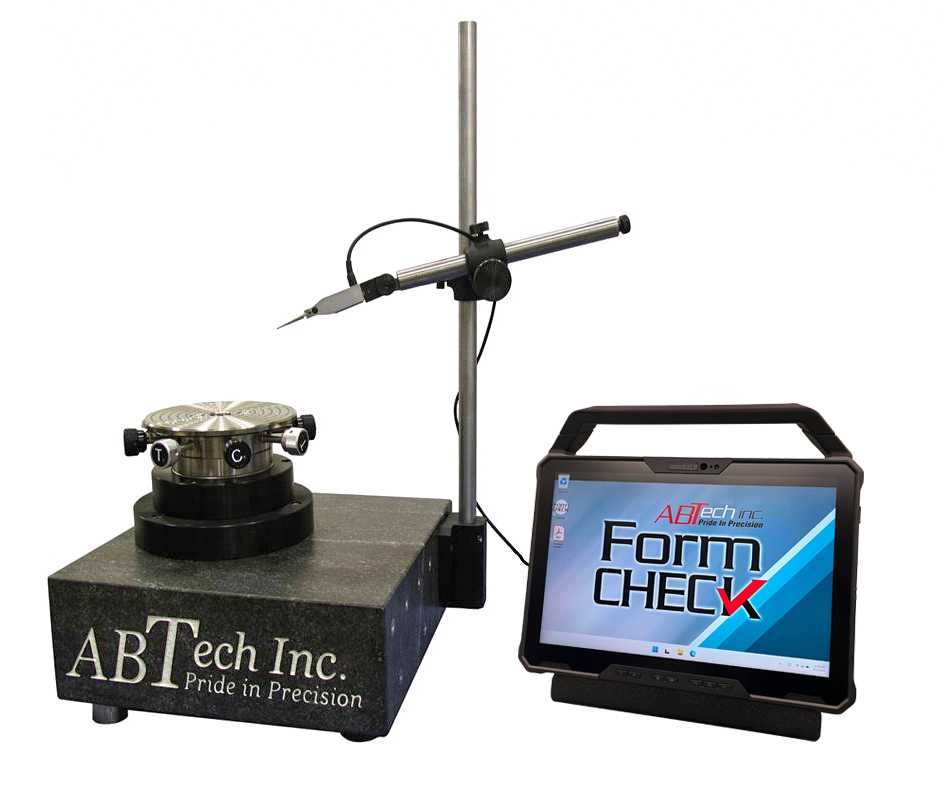

The FormCheck™ MicroTIR series eliminates these headaches by providing a ready-to-measure turnkey system. Mounted on an inspection-grade granite surface plate, it includes a precision electronic indicator, gage stands, and an intuitive 10” touchscreen display.
A standout feature is the standard Tilt & Center Worktable. Its 8-knob adjustment configuration (4 centering and 4 leveling at 90°) allows operators to quickly align parts to the bearing’s axis of rotation. This reduces eccentricity and drastically cuts setup time compared to programming a Coordinate Measuring Machine (CMM) or piecing together a custom DIY solution. For quality labs actively evaluating cmm alternatives to improve throughput, this is a massive advantage.
The ABTech Advantage: Turnkey, Sub-Micron Accuracy
Sub-micron TIR measurement requires a foundation built on absolute stability and frictionless motion. Air-bearing technology removes the variables of mechanical wear and asynchronous error, providing the ultimate reference axis for quality control.
Every product ABTech sells exemplifies a company-wide commitment to "Pride in Precision" craftsmanship, with all products designed, manufactured, and tested exclusively at our New Hampshire facility.
Ready to optimize your inspection throughput with ultra-smooth, maintenance-free accuracy? Explore the fully integrated ABTech FormCheck™ MicroTIR series or contact our precision motion experts to configure a measurement solution tailored to your exact needs.
