In any precision manufacturing or metrology system, the quality of the final product often comes down to the accuracy and stability of a single, critical component. The choice of spindle technology can directly impact everything from surface finish and part geometry to operational speed and system longevity.
As leading providers of precision motion components, we know this choice is critical. For engineers and manufacturing leaders, this leads to a central question: should you specify an air-bearing spindle or a mechanical-bearing spindle? The answer isn’t about which is universally "better," but about which is the right tool for the job.
This article provides a clear comparison of these two powerful technologies, covering their operating principles, key advantages, and ideal applications to help you select the perfect high-precision Spindles for your specific needs.
Understanding Air-Bearing Spindles: The Pinnacle of Precision
How They Work
An air bearing spindle uses a thin layer of pressurized air to support the rotating shaft, eliminating all metal-to-metal contact. This enables truly frictionless motion, ultra-smooth rotation, and elite performance at high speeds. This is known as advanced air bearing spindle design.
Key Advantages & Features:
- Unmatched Precision: Achieve nanometer-level precision, ideal for ultra-fine part geometries and inspection tasks. These are true ultra precision spindles.
- High Speeds: As a high speed spindle, it can reach up to 30,000 RPM while maintaining incredible stability. Perfect for cleanroom and metrology use.
- Zero Wear: No contact = no friction. These superior spindles are virtually maintenance-free.
- Thermal Stability: The constant airflow naturally cools the system, minimizing heat and ensuring high performance.
- Cleanroom Ready: Ideal for semiconductor and optics manufacturing, where contamination control is critical.
Ideal Spindle Applications:
The unique characteristics of air-bearing spindles make them the ideal choice for work holding and tool holding in turning, grinding, and polishing machines. They excel in industries like optics manufacturing, medical device fabrication, and ultra-precision machining, where flawless surfaces and the tightest tolerances are non-negotiable.

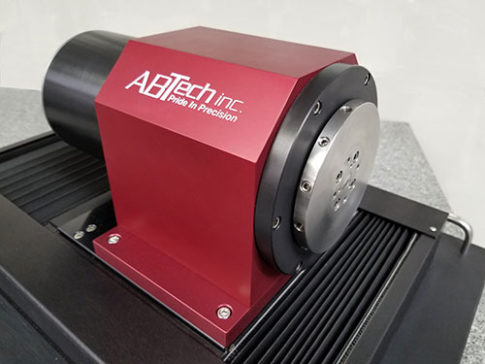

Understanding Mechanical Bearing Spindle: : Built for Versatility
How They Work
A mechanical spindle uses precision-ground steel balls or rollers to support the shaft inside the housing. Though there’s contact between parts, these proven industrial spindles still deliver reliable accuracy.
Key Advantages & Features:
- Cost-Effective Precision: ABTech mechanical spindles deliver ±0.50 micron performance—ideal for most industrial needs.
- High Load Capacity: Better suited for shock loads and rugged use environments.
- Self-Contained: No air supply needed, which makes integration simpler and reduces infrastructure cost.
- Robustness: Ideal for applications where vibration or contamination may pose challenges.
Ideal Applications:
Mechanical bearing spindles are the go-to solution for applications in optical scanning, general machining, grinding, and inspection. They are an excellent choice for a wide range of industrial automation and manufacturing tasks where high precision is required but nanometer-level accuracy is not the primary driver.
Quick links to Our Spindles
Head-to-Head Comparison
This chart provides a simple summary of the key differences.
|
Feature |
Air-Bearing Spindles |
Mechanical Bearing Spindles |
|
Precision |
Nanometer-level (ultra precision spindles) |
Micron-level (< ±0.50 µm) |
|
Motion Error |
Exceptionally Low |
Very Low |
|
Max Speed |
Very High (up to 30,000 RPM) |
High |
|
Friction |
Virtually Zero |
Low |
|
Stiffness |
High, dependent on air pressure |
Very High |
|
Lifespan |
Virtually Unlimited |
Finite, dependent on use |
|
Infrastructure |
Requires clean, compressed air |
Self-contained |
|
Cost Profile |
Higher initial investment |
More cost-effective |
|
Best For |
Ultra-precision, high speeds, superior finishes |
General precision, robustness, value |
4 Questions to Help You Choose the Right Spindle
- Do you need ultra-precision?
- Go with an air bearing spindle for nanometer accuracy.
- Choose a mechanical spindle if micron-level is sufficient.
- What are your speed and load requirements?
- Need a high rpm spindle with smooth finishes? Air.
- Expecting heavy loads or shocks? Mechanical.
- What's your environment like?
- Cleanroom setup? Use air bearing technology.
- No air infrastructure? Mechanical works best.
- What’s your budget and long-term ROI?
- For long-term reliability, engineered spindles using air bearings offer unmatched value.
- For cost-conscious projects, mechanical options perform well at a lower upfront cost.
