From sequencing a genome to aligning a satellite's optics, progress in every major industry hinges on motion measured in microns and nanometers. But how is this incredible precision achieved? The answer often lies in an essential piece of technology: the linear stage.
A linear stage is a component that provides highly accurate and repeatable movement along a single, straight path. As a core element in thousands of applications, these devices are the unseen engines of modern technology. This article will explore the critical role of precision linear stages across key industries and guide you in selecting the perfect solution for your specific needs. As a leader in custom solutions and precision motion components, ABTech is the expert partner you can trust to solve these complex challenges.
What is a Linear Stage?
At its core, a linear stage is designed for precision positioning, moving a payload with exceptional control. When evaluating a stage, a few key performance metrics are critical:
- Accuracy & Repeatability: The ability to go to a precise location (accuracy) and return to the exact same spot, every single time (repeatability).
- Travel: The total distance the stage can move from one end of its range to the other.
- Resolution: The smallest possible incremental move the stage can make.
- Load Capacity: How much weight the stage can carry and move without compromising its precision performance.
Understanding these fundamentals is the first step toward appreciating their impact across different sectors.
Linear Stages in Optics & Photonics
The extreme sensitivity of optical systems demands the highest level of precision. In high-magnification microscopy or laser development, maintaining a stable focal plane is paramount. This is where the vibration-free, ultra-smooth, and truly frictionless motion provided by ABTech's air-bearing linear stages is absolutely critical. These stages use a thin film of compressed air as a frictionless linear bearing, eliminating the jitter and wear associated with mechanical contact. With bases made from granite or ceramic, materials chosen for their extreme thermal stability, these stages resist environmental changes that could otherwise compromise nanometer-level precision. This combination provides the unwavering stability and sub-arcsecond geometric tolerances needed for the most sensitive optical measurements and assemblies.
Linear Stages in Aerospace & Defense
Aerospace applications demand absolute reliability in punishing environments. When calibrating a satellite's guidance system, components must perform flawlessly under vacuum. ABTech's mechanical linear stages are engineered for this reality. They are built with precision crossed roller ways, a design that provides the high stiffness and load capacity required, making it a true high-load capacity stage able to handle heavy aerospace components. This ensures smooth, repeatable motion for critical calibration and inspection tasks, delivering micron-level accuracy to 1 micron per inch of travel. We specialize in creating stages from vacuum-compatible and specialty materials to build robust precision motion systems that our clients can depend on.
Linear Stages in Medical Devices & Life Sciences
In the medical field, precision can be the difference between a diagnostic breakthrough and a failed experiment. In DNA sequencing and digital pathology, the stage's motion must be perfectly smooth; any stutter can lead to blurred images or misread data. When manufacturing components for surgical robots, the absolute repeatability of a linear stage translates directly to the life-saving precision of the instrument. Because our non-contacting stages have no parts that wear, they offer decades of reliable, maintenance-free motion—a critical benefit in certified medical devices and high-throughput lab automation. The smooth, repeatable motion of our stages, built with cleanroom-compatible materials and accessories, is essential for this demanding field.
Linear Stages in Energy & Semiconductor

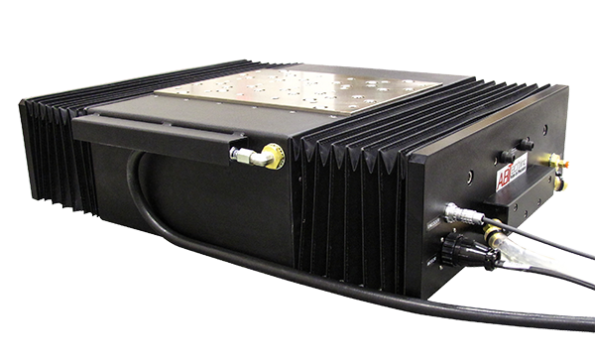

Efficiency and throughput are paramount in energy and semiconductor manufacturing. When scribing silicon wafers, any deflection in the stage can cause micro-fractures, reducing chip yields. ABTech's oil-hydrostatic linear stages are purpose-built to address these challenges. Offering up to four times the stiffness of air-bearing alternatives, their hydrostatic fluid film provides extreme load capacity and superior damping. This makes them the ideal choice for demanding machine tools and high-volume production lines where precision under heavy load is essential. Furthermore, because they are non-contacting, they offer decades of reliable, maintenance-free motion, a crucial advantage in 24/7 manufacturing environments where downtime is extremely costly.
How to Choose Your Perfect Fit: A 5-Point Checklist
Ask yourself these five questions before selecting a linear stage:
- The Load: What are you moving and how much does it weigh?
- The Journey: How far does it need to travel?
- The Target: What level of accuracy and repeatability do you need?
- The Environment: Will it operate in a vacuum, cleanroom, or industrial setting?
- The Speed: How fast do you need to get from point A to point B?
Your Partner in Precision
The versatility of high-accuracy linear stages makes them essential precision components across all of modern industry. Choosing the right one is critical for your application's performance, reliability, and budget.
Why choose us?
At ABTech, we combine decades of engineering expertise with a collaborative approach. Our comprehensive product portfolio extends beyond linear motion to include world-class rotary table and spindle solutions. We deliver fully integrated, turnkey linear motion systems, expertly pairing our stages with the optimal motors, high-resolution encoders, and amplifiers for your specific application. We are dedicated to configuring the perfect system for your unique challenge.
Interested in starting a conversation?
The engineering team at ABTech is ready to assist you in configuring the ideal linear stage for your project.
Contact us today to start the conversation.
